PP PE Bottle Washing Crushing Machine / Plastic Scrap Recycling Machine Line
>>Rigid Plastic(HDPE/PP/ABS/PC/PS) Recycling Washing Line is specialized designed to recycle: blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling.
>>Including metal detector, crusher, high speed friction washing,hot/cold washing and drying machine.
You can get a different module combinations design from Lianda according to your requirements. In range of different raw materials, Lianda provides 300-1000kg/h economy and high-level production lines.
Machine List and working processing
>>After getting waste plastic raw material, LIANDA Technicians will study and analysis the main contaminants , then provide a proper solution to remove most of the impurities by the idea of mechanical, chemical, physical.
PP PE Bottle /HDPE/PP Rigid plastic recycling machine line (You can get a different module combinations design from Lianda according to your requirements) | |
| |
| Belt conveyor | Load the plastic bottles to the Crusher |
| Crusher Machine | Cut HDPE/PP/PC/ABS/PS rigid plastic into flakes with water for pre-washing and good for crusher blades |
Friction washer (Low speed) | Combined with Crusher.To have pre-wash and centrifugation of the flakes |
| Screw feeder | Load the flakes |
| Floating washer | Hot washing/cold washing for customized. Remove oil ,chemicals, dust, sands, sludge, soil and other sink contaminants |
| Screw discharger | Load the flakes |
| High speed friction washer | Remove water/glue/dirty from flakes by strong forced friction and centrifugation. |
| Floating washer | To clean again |
| Screw discharger | Load the flakes |

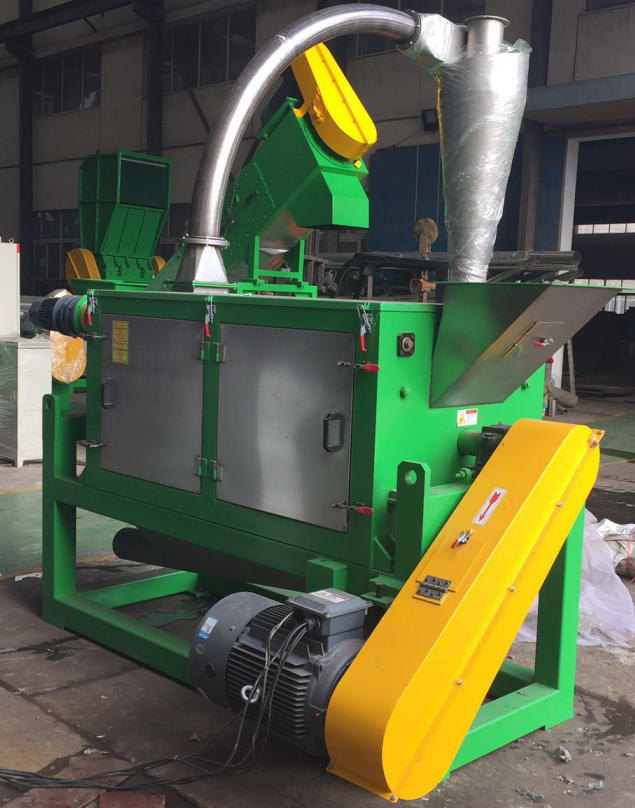

| Horizontal dewatering machine | To dry the flakes. Final moisture can be about 1.8% |
| Thermal dryer | Reduce humidity to be less than 1% |
| Zigzag separator | Remove dust/fines/labels |
| Silo | Storage the cleaned, dried flakes |
| Electrical cabinet | Control the full line |
Machine Photos
Crusher Machine
>> Knife holder structure adopts a hollow knife structure design, which can better cut hollow plastics during crushing.
>>The output is 2 times higher than the ordinary crusher of the same model
>>suitable for wet and dry crushing.
>>The chamber with wear-proof design
>>Conbined with low speed friction washer
High speed friction washer
>> Strongly friction to clean the materials mechanically
>>With the function of dewatering
Floating Washer
>> Hot washing/cold washing for customized
>> Clean materials by water, paddles and friction, Sludge and sands discharge by pneumatic valves
>>Drying materials by centrifugal force
>> Final moisture can be about 1.8%
>>Adopt NSK bearing
Our Service
1.We will provide testing if the customer comes to visit factory to
see the machine.
2.We will provide detail machine technical specification ,electric
diagram,installation,operation manual and all the documents which
customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training
the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty
time,we we will provide spare parts free,and over warranty time,we
will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole
lifetime .
|
|
