| Brand Name : | Lianda |
| Model Number : | LDDZ |
| Certification : | CE |
| Price : | USD10500-USD60000 |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram |
| Supply Ability : | 30 sets per months |
| Delivery Time : | 30 working days after get the deposit |

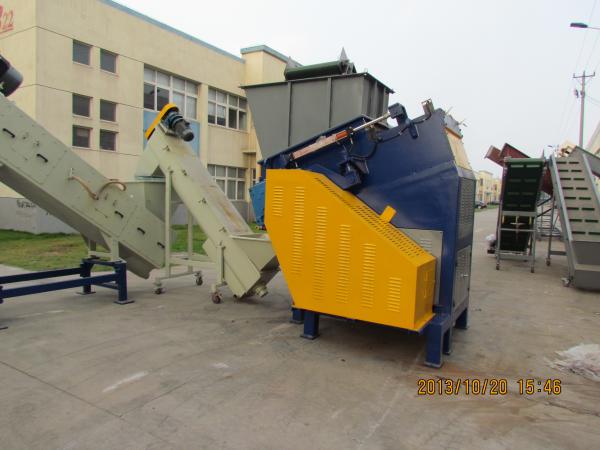

Single shaft shredder for waste PE PP films, woven bags
Single shaft shredder description:
Single shaft shredder (with inclined shaft) is suitable for
shredding jumbo bags. Inclined shaft design is better for material
feeding to shredding room. There are model 650, model 800 and model
1200 for option. Capacity: 300-400kg/h, 700-800kg/h and 1-2ton/h.
Advantages of Jumbo Bag Shredder:
| 1 | Material of blade | SKD-11, D2,DC53 optional |
| 2 | Blade design | Knives are concave ground square design, the cutters can be turned after a side is worn out. It with high quality output, save time |
| 3 | Outer bearing | Bearing is installed outside of machines. The main shaft and the machine enclose is sealing by skeleton seal. It avoids the crushed materials come into the bearing effective. And improve the using life of bearing. |
| 4 | Hydraulic pushing system | Hydraulic pushing system to push materials into the shredding shaft and then shred materials. Improve the capacity |
| 5 | Control system | PLC system control |
Machine details
Specification:
| Model | S650 | S800 | S1200 |
| Fixed blade | 2pcs | 4pcs | 4pcs |
| Rotary blade | 26pcs | 45pcs | 69pcs |
| Motor power | 30kw | 45kw | 75kw |
| Output | 300-400kg/h | 600-700kg/h | 1-2ton/h |
Why choose us:
1. We are professional manufacturer of plastic recycling and have professional technical team, focus on provide high quality equipment and good service for customer.
2. Our plant with area of 7600 square meters, 62 employees. All skill workers have professional skills certificates.
3. We have professional production QC team to ensure the machine manufacturing quality.
4. All equipment are running test before shipment.
5. During customer visit, we can take customer to our customer ‘s factory to looking machine working.
Our service:
1.We will provide testing if the customer comes to visit factory to
see the machine.
2.We will provide detail machine technical specification ,electric
diagram,installation,operation manual and all the documents which
customer needed for clearing customs and using the machine.
3.We will provide engineers for helping installation and training
the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty
time,we we will provide spare parts free,and over warranty time,we
will provide spare parts with factory price.
5.We will provide technical support and repair service in the whole
lifetime .
Pictures for reference:
