Recycling is for better future
5 Years
| Ask Lasest Price | |
| Brand Name : | LIANDA |
| Model Number : | LDJG-300 |
| Certification : | CE,SGS,ISO9001 |
| Payment Terms : | T/T, L/C, Western Union |
| Delivery Time : | 40 working days |

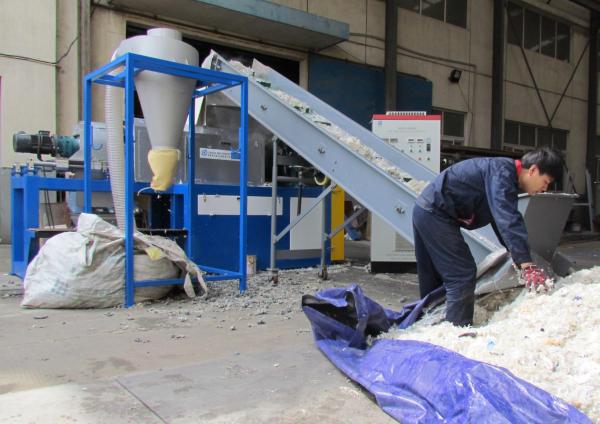

Agricultural film squeezing pelletizing dryer
The plastic film squeezing pelletizing machine is used for drying washed films , woven bags,PP Raffia bags, PE film etc and make the washed films to be like granulates. The plastic film squeezer can work on the accordance with washing and pelletizing line with stable capacity and whole process automation to save labor cost. The plastic film squeezer can be applied for:
The plastic film squeezer can remove almost 98% water from washed film efficiently. The corn part is the screw surrounded by filter screen mesh which will push the material forward under strong pressing and squeezing power,the water will filtered out fast.
The heating system: one is from self-friction power, another is from auxiliary electric heating. The heating system will semi-plasticied the washed film and extruded out from the mould. There are the pelletizing blades installed beside the mould,the semi-plasticied film will be cut by speed pelletizing blades. Finally the cutted pellets will be cooled by air and transmit to cyclone silo.
.
The screw barrel is made of material feeding barrel, compressing barrel and plasticized barrel. After feeding, squeezing , the film will be plasticized and cut to particle by the pelletizer which is installed besides the mold
Film Squeezing pelletizing dryer | |||
Model | 300 | 500 | 1000 |
Motor power (KW) | 55 | 90 | 132 |
Screw diameter (MM) | 270 | 300 | 320 |
Output (KG/H) | 300 | 500-600 | 800-1000 |
Pelletizing motor (KW) | 3 | 4 | 5.5 |
| Advantages: Since Film is easily to be wrapped and difficult to be dewatering, we adopt the design of variable screw distance to get | |
| 1 | Uniform feeding without stuck |
| 2 | Make water removing more than 98% |
| 3 | Less energy cost |
| 4 | Easily for feeding the particle to the extruder and enlarge the capacity of the extruder |
| 5 | Stable the quality of finished particle |
1.Pre-sale: we given client the details technician offer etc
2.In-sales: we supply the details layout, installation instruction,
technician support for the clients
3.After sales: we arrange engineer to install the machinery and
training the workers for client
4.We have 24 hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always up date the new technology to every customer
|
|
