Description:

Garbage film recycling line is designed for crushing, washing, drying garbage films.

The basic process as follow:

Belt conveyor – Plastic crusher - Friction washing dewater – High speed friction washer – Double V bottom floating washer – screw discharger – High speed dewater – Air conveying system – Hoper.

We give customer suggestion and device according to customer's materials. Different materials, device of recycling machines are different.

Specification:

Advantages:

Sand/grass remover: it can remove sand and impurities from garbage films and rate is 55%-75%.

Friction washing dewater: It is pre-friction washing garbage films from crusher and remove most dirty water in PE film.

PE film squeezer: Final moisture of PE film after high speed dewater is around 15%. It also can use PE film squeezing dryer instead of dewater and final moisture is 3-5%. Or use PE film squeezing pelletizer instead of dewater, final products like popcorns, final moisture content around 1%.

Floating washer: Floating washer bottom is designed as coned with dirty discharging valve. While cleaning the floating washer, just need to open the valve, no need manual cleaning

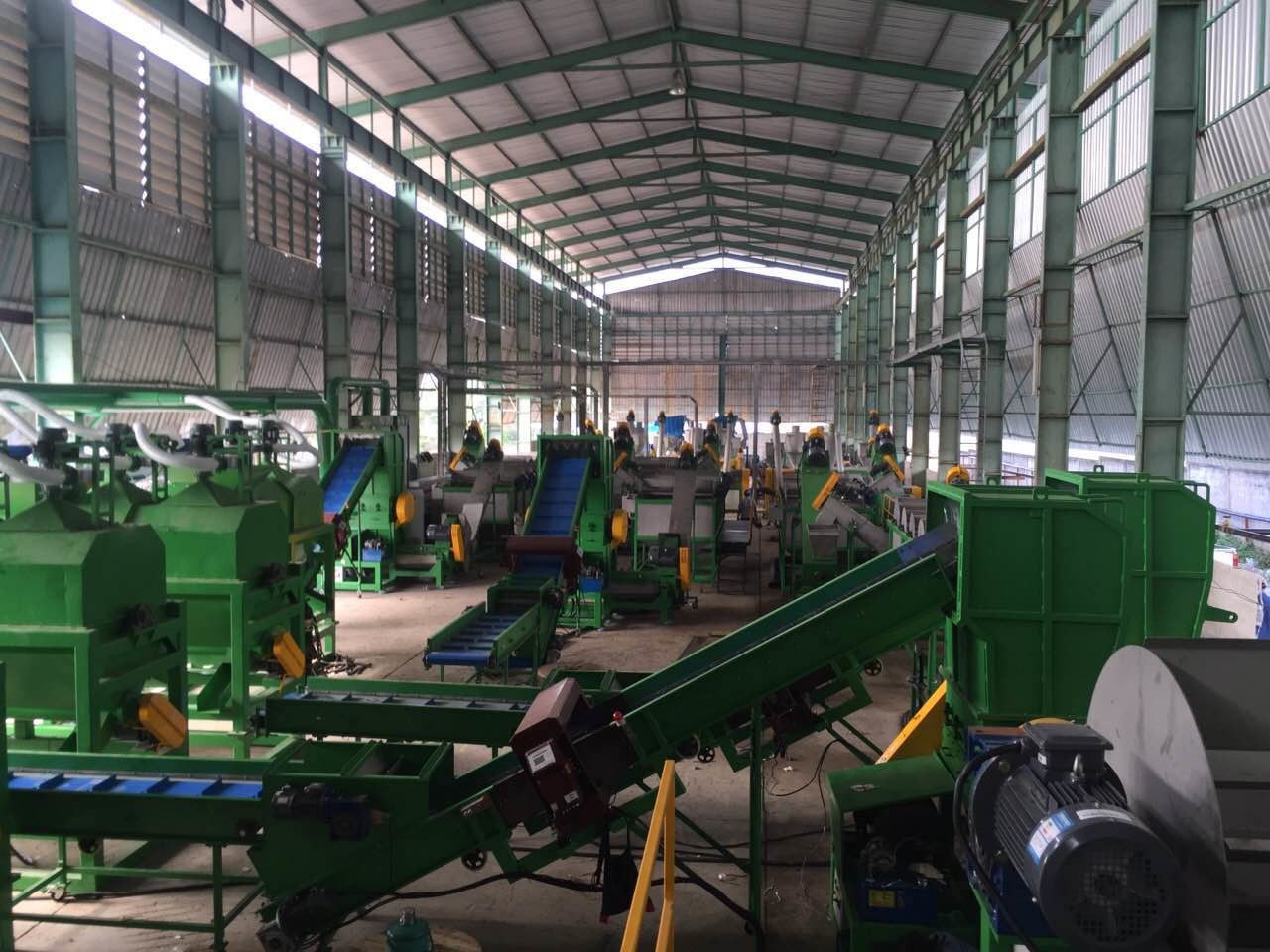

Pictures for reference:
