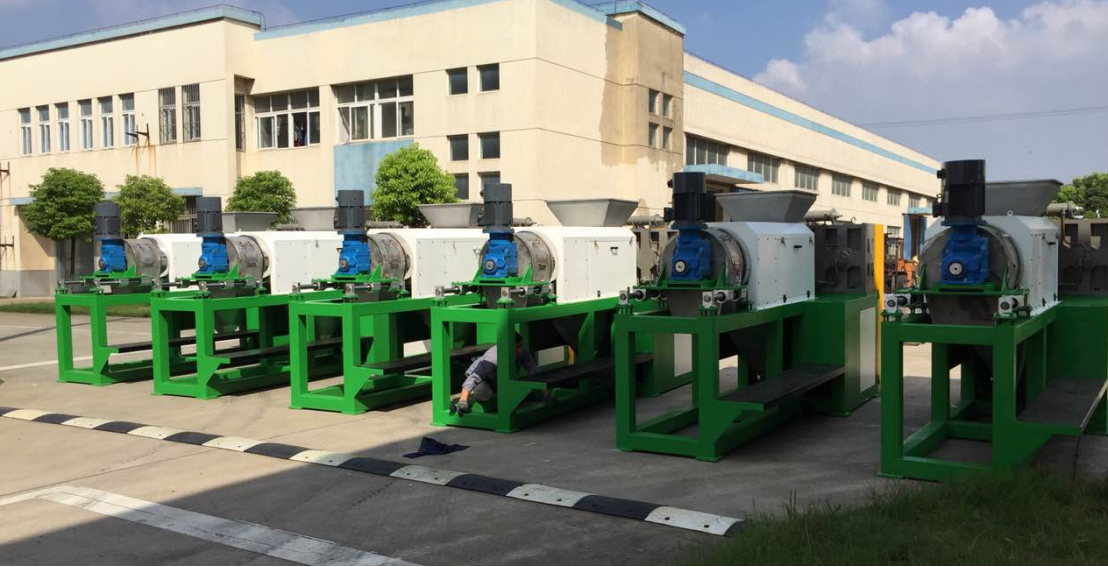

PP Raffia bag squeezing pelletizing dryer
The plastic film squeezing pelletizing machine is used for drying washed films , woven bags,PP Raffia bags, PE film etc and make the washed films to be like granulates. The plastic film squeezer can work on the accordance with washing and pelletizing line with stable capacity and whole process automation to save labor cost. The plastic film squeezer can be applied for:
How the machine work: Film Squeezing Pelletizing dryer remove the water of the washed film by screw pushing and electrical magnetic heating. with the screw squeezing and electrical heating, the washed films will be had high degree of drying and full plasticized, low power consumption, high output. The final moisture is only 3-5%.
The screw barrel is made of material feeding barrel, compressing barrel and plasticized barrel. After feeding, squeezing , the film will be plasticized and cut to particle by the pelletizer which is installed besides the mold
Film Squeezing pelletizing dryer | |||
Model | 300 | 500 | 1000 |
Motor power (KW) | 55 | 90 | 132 |
Screw diameter (MM) | 270 | 300 | 320 |
Output (KG/H) | 300 | 500-600 | 800-1000 |
Pelletizing motor (KW) | 3 | 4 | 5.5 |
| Advantages: Since Film is easily to be wrapped and difficult to be dewatering, we adopt the design of variable screw distance to get | |
| 1 | Uniform feeding without stuck |
| 2 | Make water removing more than 98% |
| 3 | Less energy cost |
| 4 | Easily for feeding the particle to the extruder and enlarge the capacity of the extruder |
| 5 | Stable the quality of finished particle |
1. We provide all the machines for the complete production
according to customer's requirements.
2. We provide complete service for factory layout and other
information to help customer to build the factory.
3. We provide good service for machine installation and training,
until the customers can run the machines and make stably
production.
4. Except for one year quality guarantee, we provide after-sale
service for all the life.
5. For long-term cooperation, we always provide good quality,good
price and good service to customer.
6. One-to-one 24 hours full-time service.
|
|
