Recycling is for better future
5 Years
| Ask Lasest Price | |
| Brand Name : | Lianda |
| Certification : | CE，ISO9001 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 sets/year |
| Delivery Time : | 5~8weeks |

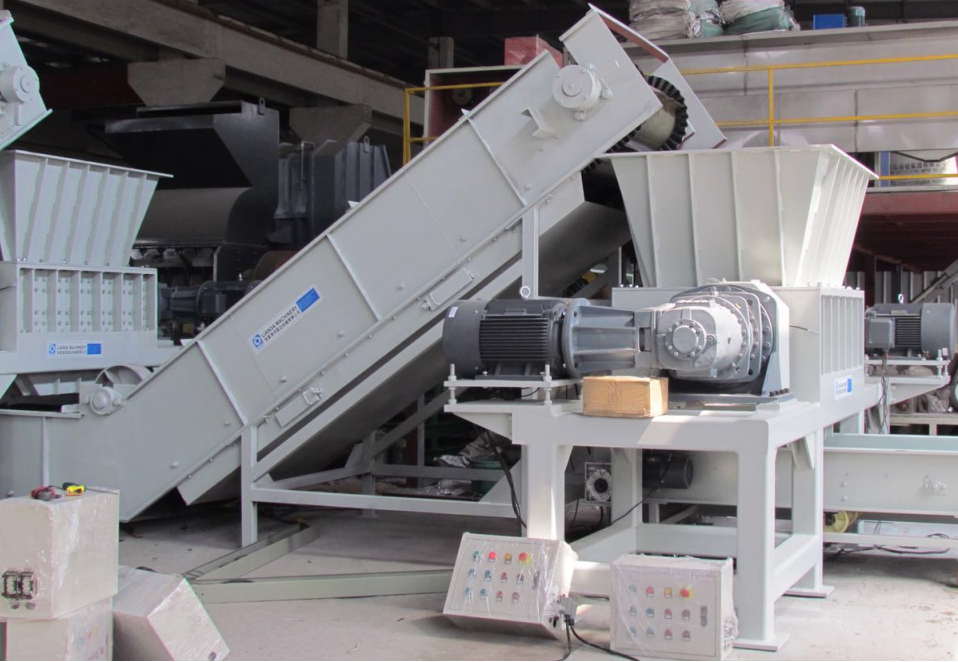

Double shaft shredder machine,plastic container shredder,plastic drum shredder,industrial plastic shredder,solid waste
LIANDA Design
|
|
Metal material: Aluminum material,motor shell,oil drum, waste vehicle crust,ferrous waste, waste steel plate etc | Waste tires: Car tire, truck tire,OTR tire etc |
|
|
Electronic waste: Waste fridge,TV, Washer etc | Plastics: Plastic drums,packing case, plastic pallet, plastic can etc |
|
|
Metal drum | Industrial waste |
Machine model
| Model | Rotating diameter (mm) | Main shaft speed (rpm) | Blade Thickness (mm) | Blade quantity (pcs) | Cutting chamber (mm) | Motor power (kw) |
| LD-800 | 320*2 | 20 | 40 | 22 | 800*650 | 18.5*2 |
| LD-1000 | 360*2 | 20 | 50 | 20 | 1000*650 | 22*2 |
| LD-1200 | 420*2 | 20 | 50 | 29 | 1200*800 | 45*2 |
| LD-1500 | 514*2 | 20 | 50 | 32 | 1500*1000 | 110*2 |
Machine Details
1 | Components of double shaft shredder
|
|
| Different material adopt different blade rotor model | ||
| German imported blade material have strong impact resistance, and broken metal knives will not break. | ||
| Both the inner hole of the tool and the spindle surface adopt a hexagonal design to realize the uniformity of the blade force. | ||
The blades are arranged in a spiral line to realize efficient cutting. | ||
| 2 | The bearing is four-fold sealed, effectively waterproof and dustproof. |
|
| Split bearing seat design to facilitate bearing and rotor maintenance | ||

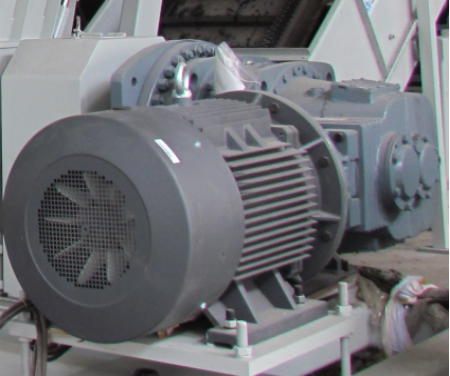

| 3 | Adopt planetary gear reducer, smooth running and shock resistant |
|
| 4 | Siemens PLC monitors the motor current in real time, and the knife axis automatically reverses when the load is overloaded to protect the motor; |
|
| 5 | The equipment has passed CE certification and complies with EU safety standards | |
|
|
